Cable Assemblies and Connectors

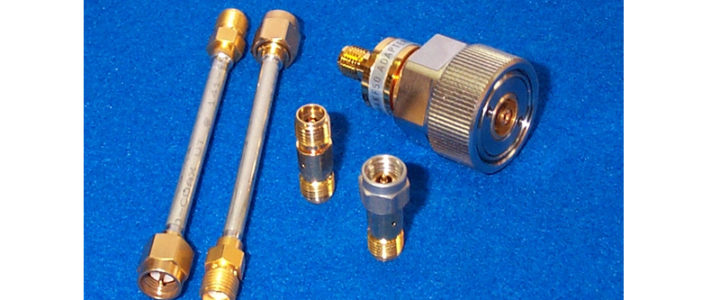

Coaxial adapters

Coaxial adapters

Coxial adapters allow connection between different connectors type and family

Part NumberConnector #1Connector #2Frequency bandwidth
HY0117DAPC-7N maleDC-18 GHz
HY0117FAPC-7N femaleDC-18 GHz
HY0123DAPC-73,5mm maleDC-18 GHz
HY0123FAPC-73,5mm femaleDC-18 GHz
HY03D11D2,92mm male2,4mm maleDC-40 GHz
HY03D11F2,92mm female2,4mm maleDC-40 GHz
HY03F11D2,92mm male2,4mm femaleDC-40 GHz
HY03F11F2,92mm female2,4mm femaleDC-40 GHz
HY03F11X2,92mm female2,4mm femaleDC-40 GHz
HY03D17DN male2,4mm maleDC-18 GHz
HY03D17FN female2,4mm maleDC-18 GHz
HY03F17DN male2,4mm femaleDC-18 GHz
HY03F17FN female2,4mm femaleDC-18 GHz
HY03D23D3,5mm male2,4mm maleDC-33 GHz
HY03D23F3,5mm female2,4mm maleDC-33 GHz
HY03F23D3,5mm male2,4mm femaleDC-33 GHz
HY03F23F3,5mm female2,4mm femaleDC-33 GHz
HY11D17DN male2,92mm maleDC-18 GHz
HY11D17FN female2,92mm maleDC-18 GHz
HY11F11F2,92mm female2,92mm femaleDC-40 GHz
HY11F17DN male2,92mm femaleDC-18 GHz
HY11F17FN female2,92mm femaleDC-18 GHz
HY11D23D3,5mm male2,92mm maleDC-33 GHz
HY11D23F3,5mm female2,92mm maleDC-33 GHz
HY11F23D3,5mm male2,92mm femaleDC-33 GHz
HY11F23F3,5mm female2,92mm femaleDC-33 GHz
HY11F23X3,5mm female2,92mm femaleDC-33 GHz
HY17F17TN femaleN femaleDC-18 GHz
HY17D23DN male3,5mm maleDC-18 GHz
HY17D23FN male3,5mm femaleDC-18 GHz
HY17F23DN female3,5mm maleDC-18 GHz
HY17F23FN female3,5mm femaleDC-18 GHz
HY17D24DN maleTNC maleDC-18 GHz
HY17D24FN maleTNC femaleDC-18 GHz
HY17F24DN femaleTNC maleDC-18 GHz
HY17F24FN femaleTNC femaleDC-18 GHz
HY21D23D3,5mm maleSMA27 maleDC-27 GHz
HY21D23F3,5mm femaleSMA27 maleDC-27 GHz
HY21F23D3,5mm maleSMA27 femaleDC-27 GHz
HY21F23F3,5mm femaleSMA27 femaleDC-27 GHz
HY22D23D3,5mm male1,85mm maleDC-33 GHz
HY22D23F3,5mm female1,85mm maleDC-33 GHz

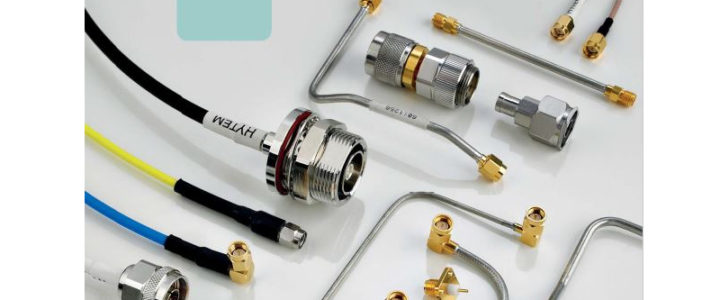

Coaxial cable assemblies

Coaxial cable assemblies

Hytem offers a wide range of coaxial cable assemblies from DC to 67GHz
All standard connectors are available, from 1mm to 3-1/8
Numerous cables allow different configurations and options : phase matching, delay, specific losses, markings, mechanical protections (plastic or metal).

Check our catalog !

Catlogue cordons

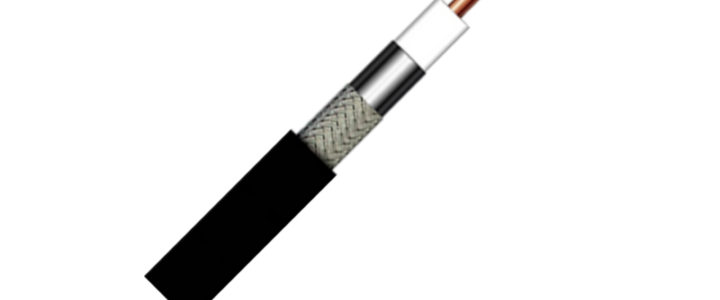

Multi flexible cables


Set your parameters:
Cable part number:
Cable length: Feet Meters
Frequency:  MHz
Load SWR:  : 1
Power In:  W

Results at 25°C and sea level:
Matched Loss:  dB
SWR Loss:  dB
Total Loss:  dB
Power Out:  W

Part NumberCable typeTemperature rangeMinimum bend radiusWeightFrequency rangeImpedanceVelocity of propagationShielding effectivenessJacket and Color
HY047MBFlexible alternative to .047" semi-rigid -65 °C ~ +125 °C5 mm (stat) / 10 mm (dyn)5 kg/kmDC ~ 18 GHz50 Ohms70 %90 dB (min)Blue FEP Ø 1.42 mm
HY047SEFlexible alternative to .047" semi-rigid -55 °C ~ +200 °C5 mm (stat) / 10 mm (dyn)5 kg/kmDC ~ 65 GHz50 Ohms70 %100 dB (min)Blue FEP Ø 1.42 mm
HY405MBFlexible alternative to .085" semi-rigid -65 °C ~ +125 °C15 mm (stat) / 30 mm (dyn)22 kg/kmDC ~ 18 GHz50 Ohms70 %90 dB (min)Blue FEP Ø 2.64 mm
HY405SEFlexible alternative to .085" semi-rigid -55 °C ~ +200 °C10 mm (stat) / 20 mm (dyn)22 kg/kmDC ~ 40 GHz50 Ohms70 %100 dB (min)Blue FEP Ø 2.64 mm
HY402MBFlexible alternative to .141" semi-rigid -65 °C ~ +125 °C20 mm (stat) / 40 mm (dyn)49 kg/kmDC ~ 18 GHz50 Ohms70 %90 dB (min)Blue FEP Ø 4.06 mm
HY402SEFlexible alternative to .141" semi-rigid -55 °C ~ +200 °C20 mm (stat) / 40 mm (dyn)49 kg/kmDC ~ 26.5 GHz50 Ohms70 %90 dB (min)Blue FEP Ø 4.06 mm
HY401MBFlexible alternative to .250" semi-rigid -65 °C ~ +125 °C40 mm (stat) / 80 mm (dyn)142 kg/kmDC ~ 18 GHz50 Ohms70 %90 dB (min)Blue FEP Ø 6.90 mm
HY402LPLow PIM flexible 160 dBc (min)-65 °C ~ +125 °C20 mm (stat) / 40 mm (dyn)49 kg/kmDC ~ 6 GHz50 Ohms70 %90 dB (min)Blue FEP Ø 4.06 mm
HY401LPLow PIM flexible 160 dBc (min)-65 °C ~ +125 °C40 mm (stat) / 80 mm (dyn)142 kg/kmDC ~ 6 GHz50 Ohms70 %90 dB (min)Blue FEP Ø 6.90 mm
